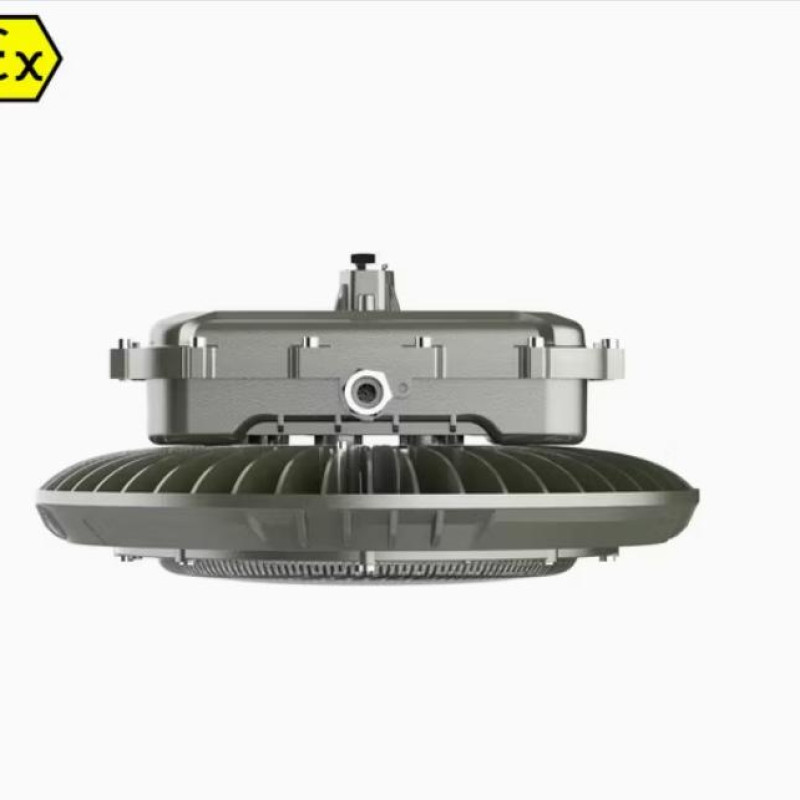

CREE LED light source, with a lifespan of up to 100,000 hours
Heat dissipation: the upper and lower ventilation and convection
structure WF2 anti-corrosion grade
Wide operating temperature range of -30 to 50°C
High luminous efficacy of 120Lm/W
Various installation methods
Tempered glass cover (transparent and matte available) adopts
honeycomb-shaped crystallization point anti-glare design benefiting
from even and soft shadowless light. Transmittance is as high as 95%-
98%
Power: 185 – 280W
CCT: 3000-6500K
CRI: ≤70
Lifespan: 100,000hrs
Voltages: AC 220V, 50/60Hz
Power factor: >0.95
Beam angle: 88o
Lumen per Watt (naked chip): 150
Lumen per Watt (actual chip): 120-130
| Product Description | Size | LED Q-ty | Weight | Start-up Time | Base Specifications | Operating/Storage Temperature | Anticorrosion Grade | Explosion Proof Grade | Executive Standard |
|---|---|---|---|---|---|---|---|---|---|
| EA-HB7-L | Φ500*400mm | 240 pcs | 9.5 kg | ≤0.2 s | CREE 5050 | -40~60 °C | WF2 | Ex d IIC T6 | GB3836.3, GB3836.10 |
| EA-HB8-L | Φ450*370mm | 260 pcs | 10.2 kg | ≤0.1 s | CREE 7070 | -35~55 °C | WF2 | Ex d IIC T5 | GB3836.4, GB3836.12 |
All of our products use the finest components in the industry, to provide peace of mind and quality for our clients.
