MAYFIELD

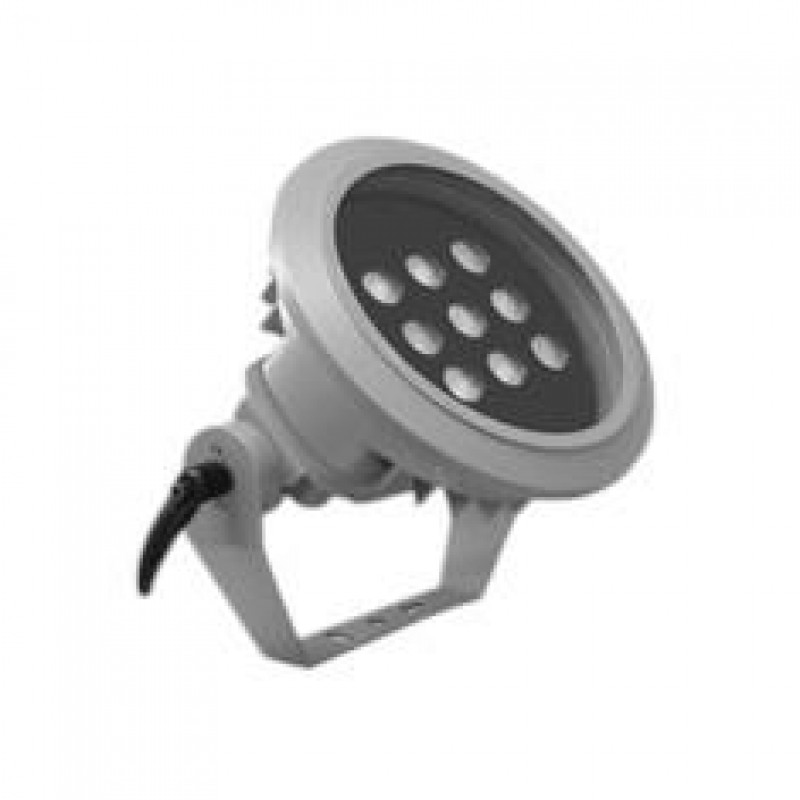

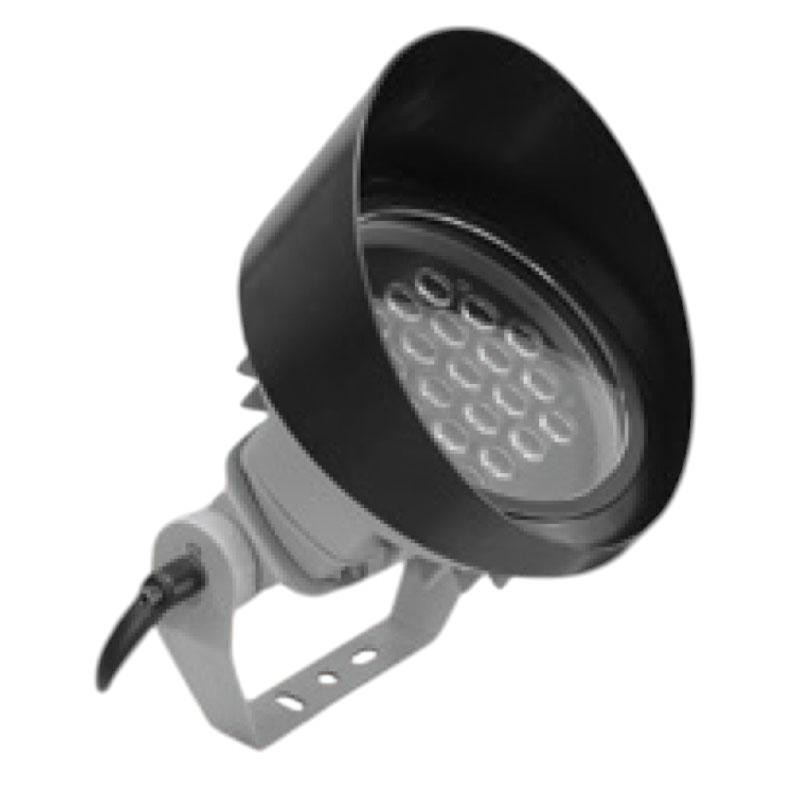

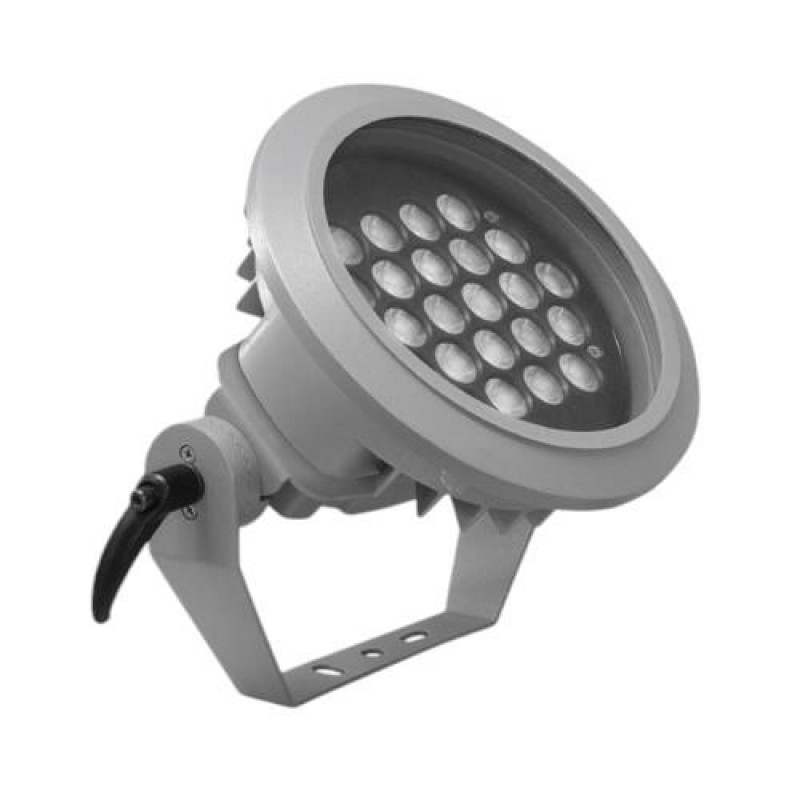

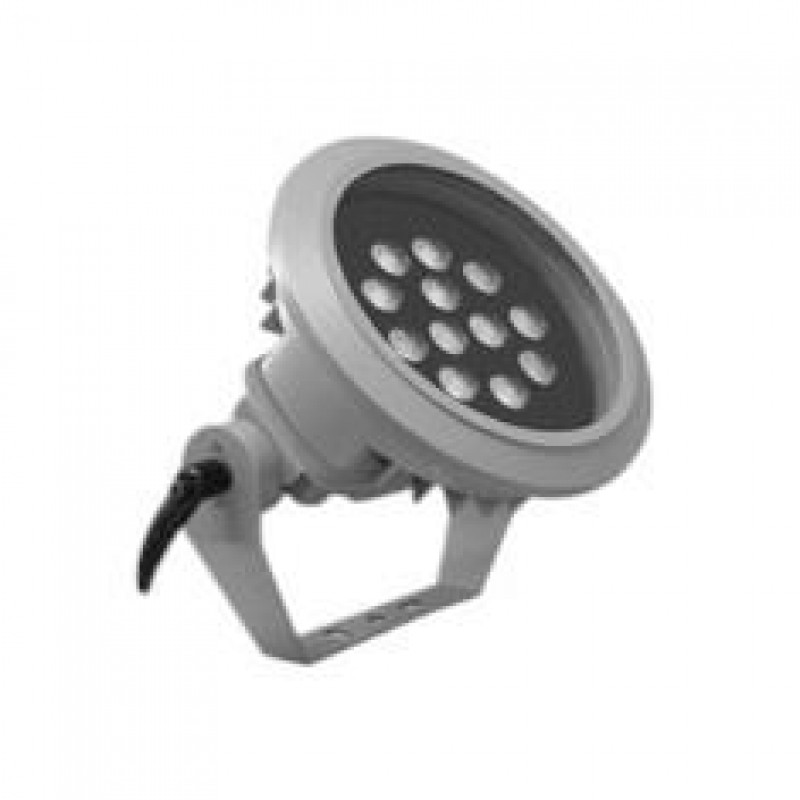

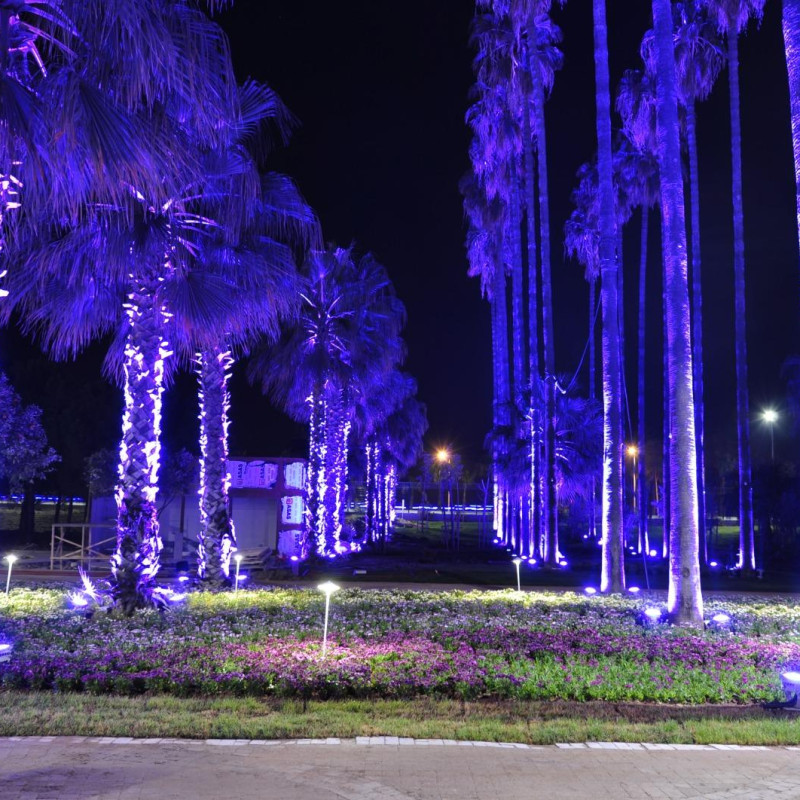

Mayfield projectors feature adjustable optics (10°–45°) for lighting columns and walls, with white, red, green, blue, and RGB LEDs. Controlled via DMX, they allow dimming and scenario management from one point. Available in various power options, they include adjustable mounting feet for precise focus. The aluminium body is corrosion-resistant for outdoor durability.

FEATURES:

Driver Brands:
Tridonic, Philips, Osram, Eaglerise

LED Brands:
Osram, Philips, Lumileds, Bridgelux, Cree

Control Type:
On/Off, Phase-cut, 1-10V, DALI, Casambi, DMX

Material:
Alumnum injection painted with
electrostatic paint

Optics:
Impact resistant tempered glass and
high efficent lens

Colours options:
Grey

LED:
High efficiency power LED

Accessory:
Standard cable or IP68 connector

IP65

IK08

SPECIFICATION:

CCT:
3000-4000-5000K, R-G-B-Amber, RGB

Installation type:
Mounting feet

CRI:
>70 / (optional >80)

Beam angle:
10°, 30°, 45°

Voltage:
220-240V, 50-60Hz

Dimensions:
Ø178x178mm, Ø220x220mm

LED rated life (hours):
>60K – L80/B10

Compliance:
CE

Product Description	Power	Lumen output	Voltage	Weight	Beam angle
EA-MFD-12	12W	1145lm	220V-40Hz	2500g	10°, 30°, 45°
EA-MFD-15	15W	1420lm	220V-40Hz	2600g	10°, 30°, 45°
EA-MFD-22	22W	2300lm	220V-40Hz	3100g	10°, 30°, 45°
EA-MFD-28	28W	3300lm	220V-40Hz	3200g	10°, 30°, 45°
EA-MFD-40	40W	4290lm	220V-40Hz	3200g	10°, 30°, 45°
