Design:

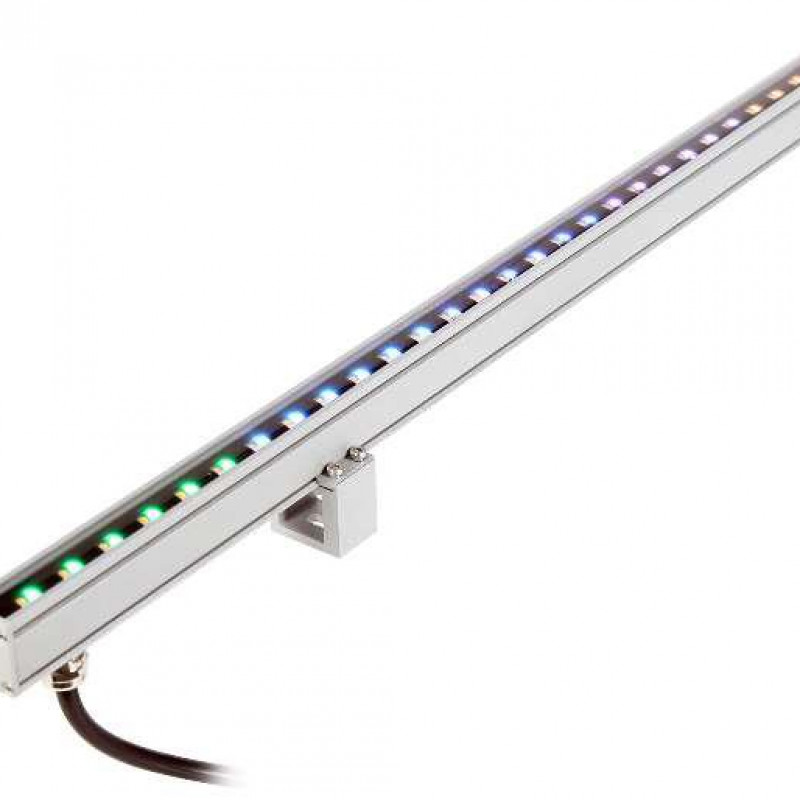

Slim 18 mm wide mini exterior linear luminaire with a modern profile.
Control System:
DMX512 compatible, with the option of auto addressing for rapid installation
or RDM addressing for advanced monitoring and configuration.
Performance:
Designed for direct-view applications, providing uniform illumination and consistent colour effects.
Applications:
Ideal for architectural accents, façades, linear outlines, and creative exterior lighting designs.
Material:
6063 with UV protected cover
Finish:
Powder coating, Black, Grey, Silver or custom RAL colour
Optics:
Clear/PC Black/PC Opal/Acrylic cover
Cable entry:
Bottom Entry, Side Left Entry or Side Right Entry
Mounting:
Supplied with standard fixture mounting brackets or optional customised brackets.
Suitable for both horizontal and vertical orientations, offering flexibility for diverse installations.
Operating Temperature:
Engineered to perform reliably in temperatures ranging from -30 °C to +50 °C.
LED:
SMD 3535
Input voltage:
15-24VDC
Dimensions (LxWXH) with brackets:
1000mm*28.5mm*60mm (for Clear Cover) 1000mm*28.5mm*74mm(for PC Dome or Acrylic Top)
Lenght: 250mm/500mm/1000mm/305mm/610mm/915mm/1200mm
| Product Description | Power | CCT | Lumen output | Efficiency | CRI | LED Q-ty |
|---|---|---|---|---|---|---|
| EA-NNT-001 | 10W/m | 3000/4000/5700K (static white) | 1000lm | 100lm/W | >80 | 60 LED/m |
| EA-NNT-002 | 10W/m | 3000/5700K (tunable white) | 1000lm | 100lm/W | >80 | 120 LED/m |
| EA-NNT-003 | 10W/m | RGB | 1000lm | 100lm/W | – | 60 LED/m |
| EA-NNT-004 | 10W/m | RGBW | 844lm (clear), 415lm (acrylic top) | 85lm/W (clear), 41.5lm/W (acrylic top) | >80 | 120 LED/m |
