Application:

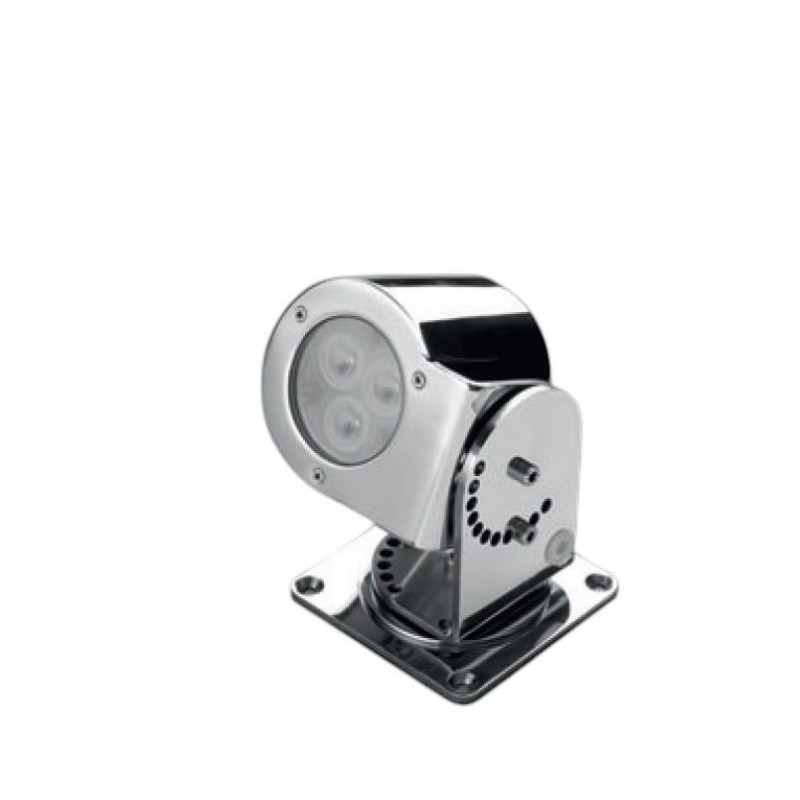

Underwater LED spot
Driver Brands:
Tridonic, Philips, Osram, Eaglerise
LED Brands:
Osram, Philips, Lumileds, Bridgelux, Cree
Control Type:
On/Off, Phase-cut, 1-10V, DALI, Casambi
Cable:
Potted 5m 3×0.75 H03 VV-F
Materials:
• 316L stainless steel body, frame, and bracket
• Stainless steel screws
• Aluminium recessing tube
• Silicone gaskets
Optics:
8 mm clear glass (frosted glass available on request)
Installation type:
Surface-mounted with adjustable bracket
CCT:
2700/3000/4000/5000/6500K
/RGB, single colour options
Beam angle:
10° / 25° / 40°
Voltage:
24V AC or DC
Dimensions:
85 mm (width) × 112 mm (height)
LED rated life (hours):
>60K – L80/B10
Compliance:
CE
| Model number | Power | Lumen output | CCT |
|---|---|---|---|
| EA-RV-6 | 6W | 510/510/612lm | 3000/4000/6000K |
| EA-RV-12 | 18W | 1350/1350/1620lm | 3000/4000/6000K |
| EA-RV-9 | 9W | 765/765/810lm | 3000/4500/6000K |
| EA-RV-27 | 27W | 2100/2100/2520lm | 3000/4500/6000K |
All of our products use the finest components in the industry, to provide peace of mind and quality for our clients.
