• 100% autonomous
• Smart system
• Customized modularity
• Designed for extreme climatic conditions
• Eliminates carbon footptint
• Complete plug-and-play
CCT: 2700K
CRI: >70
Voltage: 12VDC
Current: 2.5A
Power factor: >0.95
Lifespan: 100,000h

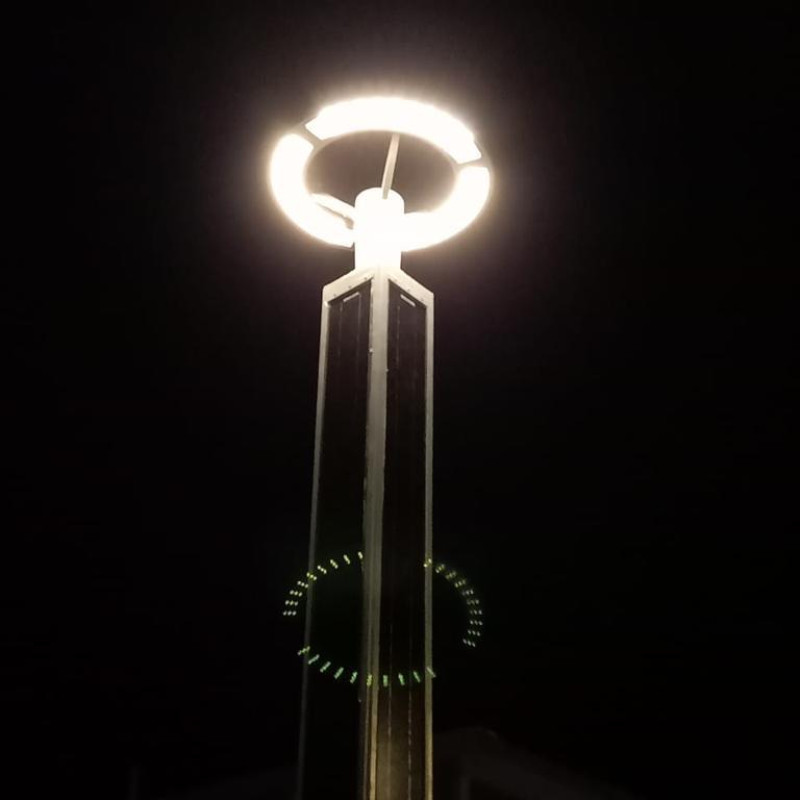

| LED Street Light | |
|---|---|
| Model number for luminaire | EA-30 |
| Model number for the pole | EA-SIPL-30 |
| Whole lamp luminous flux | 4,235 lm |
| CCT | 2700K |
| CRI | Ra>70 |
| Lifespan | 100,000 hrs |
| Voltage | 12V DC |
| Current | 2.5A |
| Driver efficiency | >90% |
| Power Factor | >0.95 |
| IP & IK rating | IP66 & IK10 |
| Heat radiator | Anodized aluminium |
| Lens | PC |
| Solar Module | |
|---|---|
| Mechanical characteristics | |
| Height PV-module | 1730 mm |
| Width PV-module | 145 mm |
| Cable connection | MC4-compatible |
| Cells orientation | 36 |
| Solar cells | Mono 125×125 |
| Junction box type | IP66, 3 diodes |
| Glass | High transparency, low iron, tempered |
| Cables | 4mm², 900mm |
| Electrical data (STC) | |
|---|---|
| Nominal power Watt Pax | 60W |
| Maximum power voltage Vmp | 18.3 V |
| Power output tolerance Pmax(%) | 0~+5% |
| Module efficiency (%) | 18.4% |
| Maximum power current Imp | 3.28 A |
| Open circuit voltage Voc | 22.6 V |
| Short circuit current Isc | 3.77 A |
| Battery | |
|---|---|
| Battery | Lithium battery (LiFePO4) |
| Nominal capacity | 60Ah |
| Rated capacity | 768Wh |
| Total energy (Wh) | 768Wh |
| Energy 90% DoD (Wh) | 692Wh |
| Energy 70% DoD (Wh) | 538Wh |
| Cell chemistry | LiFePO4 |
| Nominal voltage | 12.8V |
| Max continuous discharge current | 7A |
| Charging mode | Constant current and voltage (CCCV) |
| Operating voltage range | 10V to 14.6V |
| Charging current | 10A |
| Over charge protection voltage | 14.6V |
| Self discharge | <3% per month (battery off) |
| Cycle life | >3500 times |
| Max. humidity | 100% |
| Working temperature | -20°C to +65°C |
| Warranty | 5 years |
| Service Life | 10 years (>3500 cycles) |
| Solar Controller | |
|---|---|
| Solar controller type | Max Power Point Tracking (MPPT) |
| Supported battery | Lead acid battery (gel included) and lithium battery |
| Battery voltage | 12V |
| Battery voltage range | 7V-36V |
| Charge current | 15A |
| Solar panel power | 200W |
| Solar input voltage | 17V-60V |
| Max load power | 80W |
| LED in series(S) | 5-18 |
| Output voltage range | 15V-60V |
| Circuit efficiency | >95% |
| MPPT tracking efficiency | >99% |
| Output current range | 70-5600mA |
| Working temperature | -40°C~+60°C |
