Control Type:
On/Off, Phase-cut, 1-10V, DALI, Casambi
Driver Brands:
Tridonic / Philips / Osram / Eaglerise / Meanwell
LED Brands:
Samsung
Material:
Aluminium extrusion body and aluminium injection heat sink
Colour Options:
Electrostatic powder coating in white, grey, black, and additional RAL colours
Diffuser Options:
Tempered glass (standard) / frosted glass
Emergency Backup:
3-hour emergency kit available
Installation type:

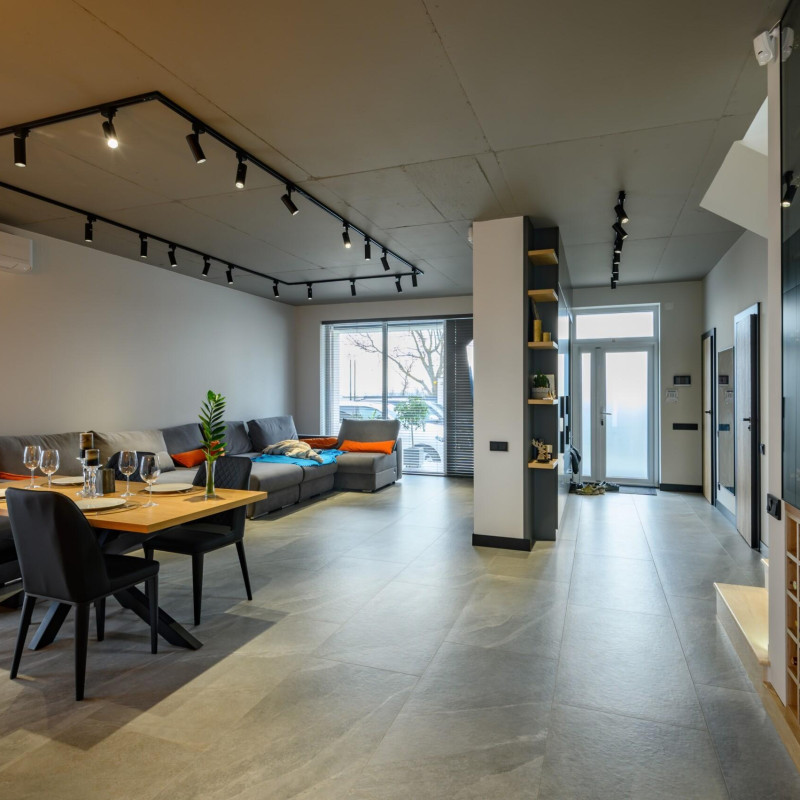

Track mounted
CCT:
2700/3000/4000/5000/6500K
CRI:
>80 / (optional >90)
Working voltage:
220-240V, 50-60Hz
Beam angle:
15°/24°/36°
Socket type:
DALI / Triphase / Monophase
LED rated life (hours):
>60K – L80/B10
Compliance:
CE
| Product Description | Power | CCT | Luminous Flux | Dimensions L*W | Driver Box Dimensions L*W |
|---|---|---|---|---|---|
| EA-XND-20 | 20W | 3000/4000/5000K | 2200/2300/2400lm | 110*90mm | 125*40mm |
| EA-XND-30 | 30W | 3000/4000/5000K | 3500/3600/3700lm | 110*90mm | 125*40mm |
All of our products use the finest components in the industry, to provide peace of mind and quality for our clients.
